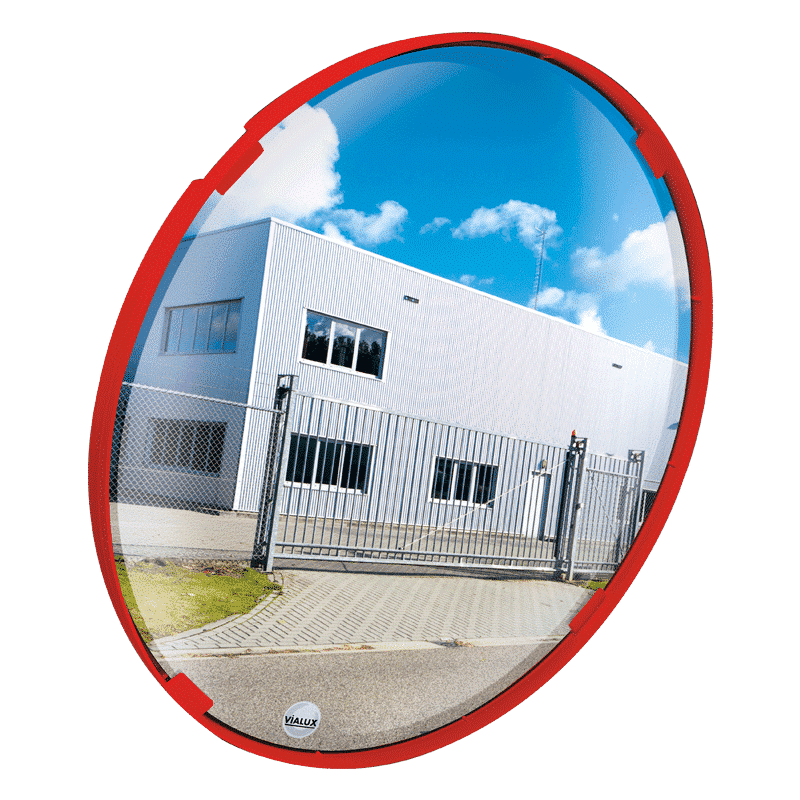

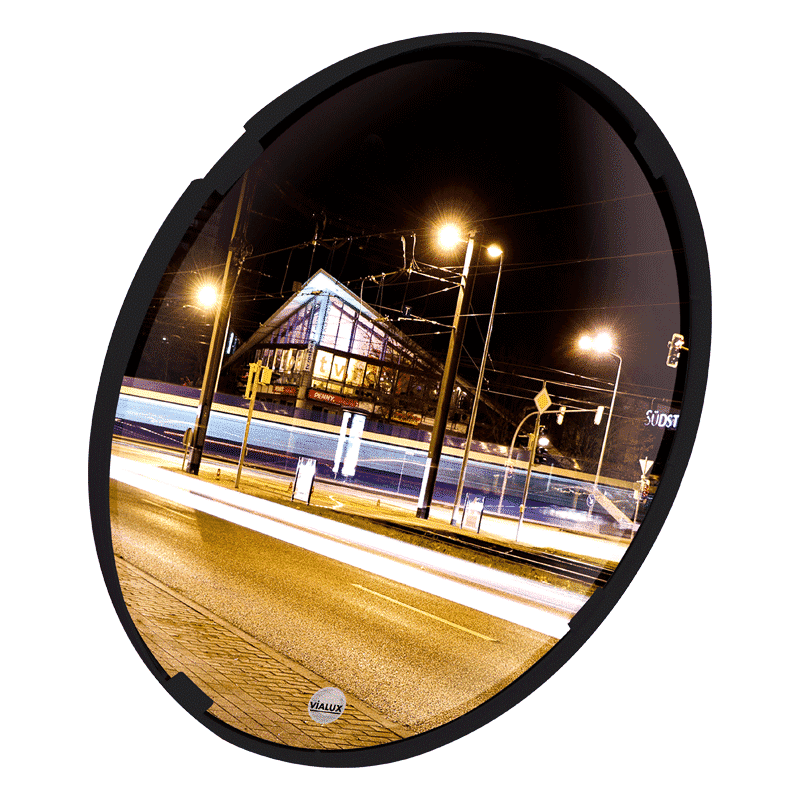

The choice of different coloured mounting frames allow multi-propose convex mirrors to adapt perfectly to their surrounding environments : Green for green spaces, red frame for increased visibility or black frame for more discretion.
DetailsThe choice of different coloured mounting frames allow multi-propose convex mirrors to adapt perfectly to their surrounding environments : Green for green spaces, red frame for increased visibility or black frame for more discretion.
Multi-propose mirrors are supplied with fully adjustable bolts and galvanised steel bracket kit for wall or post from 60 to 90mm in diameter. The kit allows the optimum orientation to be easily achieved. The kit is robust and tested to withstand winds of up to 183 km/h.
Polymir® qualities: Unbreakable, high quality, clear and sharp image, with no distortion. Anti-UV treated frames and optics to ensure longevity and protection against the elements.
P.A.S® qualities: In addition to the Polymir® qualities, P.A.S® optics have added anti-static, plus anti-scratch coating, offering a warranty of a further 2 years.
Multi-propose mirrors are supplied with fully adjustable bolts and galvanised steel bracket kit for wall or post from 60 to 90mm in diameter. The kit allows the optimum orientation to be easily achieved.
The kit is robust and tested to withstand winds of up to 183 km/h.
|
Environment |
standard |
|
Unbreakable |
yes |
|
Usage |
exterior or interior |
|
Maximum viewing distancee |
up to 30 metres |
|
Field of vision |
90°. 2 directions. |
|
Warranty |
up to 5 years |
| MAXIMUM VIEWING DISTANCE | OPTICS (mm) | POLYMIR® QUALITIES | P.A.S® QUALITIES | ||||||
|---|---|---|---|---|---|---|---|---|---|
| WHITE FRAME | BLACK FRAME | GREEN FRAME | RED FRAME | WHITE FRAME | BLACK FRAME | GREEN FRAME | RED FRAME | ||
| 3 metres | Ø 300 | 513 | 913 | ||||||
| 5 metres | Ø 400 | 514 | B 514 | V 514 | R 514 | 914 | B 914 | V 914 | R 914 |
| 7 metres | Ø 500 | 515 | B 515 | V 515 | R 515 | 915 | B 915 | V 915 | R 915 |
| 9 metres | 600 x 400 | 524 | B 524B 516 | V 524 | R 524 | 926 | B 926 | V 926 | R 926 |
| 11 metres | Ø 600 | 516 | B 516 | V 516 | R 516 | 916 | B 916 | V 916 | R 916 |
| 15 metres | Ø 700 | 517 | 917 | ||||||
| 20 metres | 800 x 600 | 526 | 928 | ||||||
| 20 metres | Ø 800 | 518 | B 518 | V 518 | R 518 | 918 | B 918 | V 918 | R 918 |
| 30 metres | 1000 X 800 | 528 | 9210 |
Multi-propose mirrors are supplied with fully adjustable bolts and galvanised steel bracket kit for wall or post from 60 to 90mm in diameter. The kit allows the optimum orientation to be easily achieved.
The kit is robust and tested to withstand winds of up to 183 km/h.
