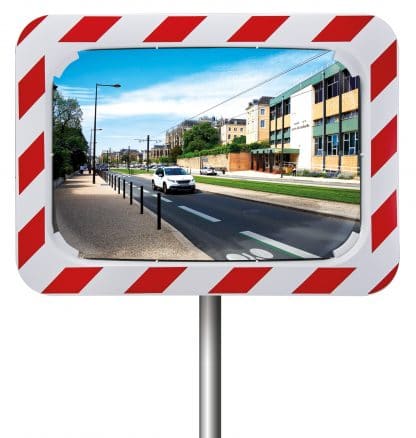

Convex traffic mirror

Unbreakable exterior convex traffic mirror, it effectively provides traffic safety on roads. Its white frame fitted with red retro-reflective tapes ensures perfect visibility of the mirror.

Details

Maximum distance between the user and the mirror

Shape

Mirror quality and warranty

Clear

Polymir®

unbreakable
Light, unalterable, impact resistant
anti-UV surface treatment

P.A.S®

unbreakable
Light, unalterable, impact resistant
anti-UV surface treatment
anti-scratch and anti-static treatment

In stock

Product code:

Weight

Optical format:

Add to my selection

Receipt quote within 48 hours

Detailed description

Our traffic mirrors are designed to prevent road accidents by providing maximum visibility at strategic locations and blind spots. Their white frame fitted with red retro-reflective tapes improves visibility of the mirror.

The optic is unbreakable, high quality, clear and offers a sharp image, with no distortion. Anti-UV treated frames and optics (plus anti-scratch coating for P.A.S® optics) to ensure longevity and protection against the elements.
The convex mirror provides a 90 ° view that allows users to control an intersection from two directions.
All convex mirrors are supplied with fully adjustable bolts and galvanised steel bracket kit for wall, round posts or rectangular posts.
These traffic mirrors is guaranteed for up to 5 years (frame, optics and fixing) *, depending on your choice of quality guarantee.

Technical features


Environment	standard
Unbreakable	yes
Usage	outdoor
Maximum viewing distancee	up to 30 metres
Field of vision	90°. 2 directions.
Warranty	up to 5 years

MAXIMUM VIEWING DISTANCE	OPTICS (mm)	FRAME (mm)	PRODUCT CODE POLYMIR® QUALITY	PRODUCT CODE PAS® QUALITY
9 metres	600 x 400	680 x 500	554-INT	956-INT
11 metres	Ø 600	Ø 750	546-INT	946-INT
20 metres	800 x 600	950 x 750	556-INT	958-INT
20 metres	Ø 800	Ø 960	548-INT	948-INT
25 metres	Ø 900	Ø 1100	549-INT	949-INT
30 metres	1000 x 800	1150 x 950	558-INT	9510-INT

Accessories or complementary products

Mounting posts

Recommendations and regulations

All traffic mirrors are supplied with fully adjustable bolts and galvanised steel bracket kit for wall or round posts (Ø60 to 90mm) or rectangular posts (60x80mm or 80x80mm). The kit allows the optimum orientation to be easily achieved. The kit is robust and tested to withstand winds of up to 183 km/h.
